Introduction

I will show how to create a simple 3D model with Houdini, 3DCG software developed by Side Effects Software Inc.

You can upload the created 3D model to STYLY by exporting it as the OBJ-format file.



今回作る3Dモデル

The 3D model we create this time



Required Development Environment

Windows 10

Houdini 17.5

Download Houdini

Download Houdini from SideFx.

Click ‘Get > Download’ in the menu at the top of the screen.

Downloadをクリック

Click ‘Download’



It brings up the login window.

If you don’t have your account, create it from the ‘Register’ form on the right of the screen.

ログイン画面が出てくるのでログインする

The ‘Login’ screen



After logging in, the ‘Download’ screen is displayed.

ログインするとDownload画面が出てくる

After logging in, the ‘Download’ screen is displayed.

Press the ‘Download’ button to start downloading the installer of Houdini.

Install Houdini

Run the installer

Run the installer downloaded.

インストーラー起動直後の画面

Screenshot – just after launching the installer



License Agreement

Click ‘Next’ to see License Agreement.

ライセンス画面

The ‘License Agreement’ window



Select components to install

It brings up a window to select components to install. Just click ‘Next’ without changing anything.

インストール要素選択画面

The ‘Choose Components’ screen for the installation



The setting for Houdini Engine

Then, you will be asked if ‘Houdini Engine’ is installed.

Just click ‘Next’ as we don’t use it this time.

HoudiniEngineインストール画面

The setting screen for the installation of ‘Houdini Engine’



Set the install location for Houdini

Set the install location for Houdini and click ‘Next’.

Houdiniのインストール先の指定

Set the install location for Houdini



Set the ‘Start Menu Folder’

Then, it brings up a window to set the folder name that will be registered with Start Menu.

Just click ‘Next’ without changing anything.

スタートメニューのフォルダ名指定

Specify the folder name for ‘Start Menu’



The setting to uninstall old Houdini version

If the old version of Houdini has been installed, you will be asked if you uninstall it.

古いバージョンのアンインストール

The setting to uninstall the old version



Click the ‘Install’ button to start the installation of Houdini. Wait for a while.



The installation completed

When the installation is completed, the following window pops up. Click ‘Finish’ to close the installer.

インストール完了画面

Screenshot – the installation is completed



Launch Houdini

Now, you can find ‘Houdini’ in the Windows Start Menu.

This time, click the free version of ‘Houdini Apprentice’ to launch it.

スタートメニューからHoudini Apprenticeを起動

Launch ‘Houdini Apprentice’ from the Start Menu



After launching, you will be asked if you use a free license or paid license.

This time we use the free version of ‘Houdini Apprentice’, so click ‘Next’ without changing anything.

Apprenticeライセンスを選択した状態でNextをクリック

Click ‘Next’ with ‘Apprentice license’ selected



It brings up EULA. Click ‘Accept’.

Acceptをクリック

Click ‘Accept’



Then, the ‘license installation completed’ message will appear. Click ‘Run’ to launch ‘Houdini Apprentice’.

ライセンスインストール完了画面

Screenshot – the installation of the license has been completed

‘non-commercial licenses’ means the one for ‘Houdini Apprentice’ in this case.



After launching, the following screen appears.

User Interface basics

This time we use the three windows as shown below.

今回使用するウィンドウ

The windows we use this time

Network View

You organize nodes in Network View.

In Houdini, the modelling is carried out by combining nodes.

Scene View

The node with its display flag set to ‘ON’ is displayed in Scene View.

box1ノードの表示フラグをONにするとSceneViewにはbox1が表示される

When turning on the display flag of the ‘box1’ node, ‘box1’ is shown in Screen View.

sphere1ノードの表示フラグをONにするとSceneViewにはsphere1が表示される

When turning on the display flag of the ‘sphere1’ node, ‘sphere1’ is shown in Screen View.

Note: You can toggle the display flag of a node by clicking on the right edge of the node.

Parameter View

Parameter View displays the parameters for the node selected in Network View.



Darken the background colour of Scene View

In the default condition, the background colour of Scene View is bright. Let’s set it to black to make models more easy-to-see.

ColorScheme = Light

The default background (ColorScheme = Light)

ColorScheme = Dark

After changing the setting (ColorScheme = Dark)



With the mouse pointer on Scene View, press the ‘D’ key to show ‘Display Options’.

In the BackGround tab, Set ‘Color Scheme’ to ‘Dark’ to darken the background of Screen View.

Color SchemeをDarkにする

Set ‘Color Scheme’ to ‘Dark’



Click ‘Save as Default’ to keep the background of Screen View black for the next time.


Save as Defaultをクリックして保存

Save the setting by clicking ‘Save as Default’

Houdini basics: Create a node in Network

I explain how to create a node in Network View here.

Show the TAB menu

With the mouse pointer on Network View, press the Tab key or right-click to show the TAB menu.

TAB メニュー

The TAB menu

The TAB menu is used to create a node.



Find a node by Typing

When the TAB menu is displayed, you can filter nodes by typing a word.

'geo'と入力するとGeometryノードがフォーカスされる

The Geometry node is focused by typing ‘geo’.



Then, press the Enter key once to enter the ‘node creation’ mode.

ノード作成準備状態

Screenshot – Ready to create a node



Press the Enter key or click the mouse to create a node at the position of the mouse pointer.

作成されたノード

The node created

Connect nodes

You can connect nodes by dragging the connector with the mouse.

ノードのコネクタ

The connectors of a node



Create and connect a node at once

Right-clicking the connector of a node can also bring up the TAB menu.

If you create a node in this condition, you can create a node and connect it to another node at once.



Houdini basics: Move across the levels in Network

Enter a node

Double-click a node or press the ‘I‘ key with a node selected by the mouse to enter the node.

ノードをダブルクリックするか、ノードをクリック選択状態でIキーを押す

Double-click a node or press the ‘I’ key with a node selected by the mouse

If you entered the ‘geo1’ node, the ‘Path’ in the upper left corner of Network View would show ‘obj/geo1’.

This ‘Path’ shows which level you are in.



ノードの中に入る

Enter the node



Exit from a node

Press the ‘U‘ key to return to the upper level.

Uキーを押すと上の階層に戻る

Press the U key to return to the upper level

That’s all for ‘Houdini basics’.



Useful operations in Network View

The following shortcuts help you to operate Network View efficiently. The important shortcuts are shown in bold.

The keyboard shortcuts are useable when you put the mouse pointer on Network View.

Description Mouse/Keyboard operation
Pan Drag with the middle button
Zoom The mouse wheel
Show the whole network Space + H
Display the TAB menu Tab
Undo Ctrl + Z
Redo Shift + Ctrl + Z / Ctrl + Y
Enter the selected node I / Enter
Exit from a node U
Turn on the display flag on a node R
Reverse the input connections on a node Shift + R
Disconnect from any wires Shake node by the mouse
Cut a connection Y + drag with the left button
Focus the selected node F
Jump Back Alt + the left arrow
Jump Next Alt + the right arrow
Layout all nodes L
Layout the selected nodes Shift + L
Move all inputs

Shift + drag with the left button



Move all outputs

Ctrl + drag with the left button



Create a table

This time I will show how to create a table with Houdini.

四角いテーブルを作る

Create a square table

Create an empty node

Create a Geometry node.

Geometryノードを作成

Create a Geometry node

The node is named ‘geo1‘.



Create a table top

Create a box

Enter the geo1 node and create a Box node.

Boxノード作成

Create a Box node



A Box node is created (it’s named ‘box1‘).

作成されたBoxノード

A Box node created

In Scene View, a box is displayed.

箱が表示される

A box is displayed.



Resize the box

Select the box1 node and set ‘Size in X’, ‘Size in Y’ and ‘Size Z’ to 2.0, 0.05 and 1.0 respectively.

box1ノードをクリックしてSize = (2, 0.05, 1)を指定

Click the box1 node and set the size to (2, 0.05, 1).

It made the box into a thin board.

Size = (2, 0.05, 1)の箱

The box with its size set to (2, 0.05, 1)

It completes the table top.



Create the legs of the table

Next, we are going to create the legs of the table.

テーブルの脚

The legs of the table



Create a leg

Create a Tube node and set its parameters as follows.

Tubeノードを作成してパラメータを設定

Create a Tube node and set its parameters



In order to display the Tube node in SceneView, you need to turn on the Display flag of the Tube node.

Click the right end of the node or select the node and press the ‘R’ key to turn on the Display flag.

TubeノードのDisplayフラグをOnにする

Turn on the Display flag of the Tube node



Now, in Scene View, a bar with a square cross-section is placed so that its top face is on the XZ plane.

作成したTube

The created Tube



Create points to copy the leg to

We copy the leg four times to create the four legs of the table.

It requires four points where you copy the leg.

You can create four points by using a Grid node.



Firstly, create a Grid node and set its parameters as follows.

This time, the table’s size is 2.0 in X and 1.0 in Z. So I set the size in X and Y to 1.8 and 0.8 so that it fits into the inside of the table.

Gridノードを作成してパラメータを設定

Create a Grid node and set its parameters



Four points have been created.

ポイントが4つ作成される

Four points are created



Copy the leg to the points

Copy the leg by using a ‘Copy to Points‘ node.

Connect the geometry to copy with the left connector of the ‘Copy to Points’ node and connect the point where the leg is copied with the right connector.

Copy to Pointsの左側にコピー対象のジオメトリ、右側にはコピー先となるポイントを指定

Connect the geometry to copy with the left connector and connect the points where the leg is copied with the right connector.



It copies the leg. Four legs are created as there are four points.



Merge the legs with the table top

Create a Merge node to connect ‘copytopoints1’ (the four legs) and ‘box1’ (the table top).

Mergeノードでテーブル脚とテーブル板を結合

Connect the legs and the table top with the Merge node



Mergeした結果

The result – the legs have been merged with the tabletop



Shift the position in the Y direction

Currently, the table legs poke through the ground (the XZ plane).

テーブルの脚がXZ平面を突き抜けている

The table legs poke through the XZ plane

To correct it, shift the object in the Y direction by using a Transform node.

As the length of each leg is 1.0 this time, set 1.0 for the Y component of ‘Translate’ in the Transform node.

Transformノードを利用してテーブルをY方向にずらす

Shift the table in the Y direction by using the Transform node.



The position of the table has been shifted by +1.0 in the Y direction, so it’s on the ground now.

テーブルが地面の上に乗っている

The table is on the ground.

Congratulations. The table is now completed.



OBJ export

You can upload the 3D table model created above to STYLY by exporting it as an OBJ file.



You can export a 3D model as an OBJ file by using a ROP Geometry node.

ROP Geometryノードを作成してtransformに接続

Create a ‘ROP Geometry’ node and connect it to ‘transform1’.



Enter the output path of the OBJ file in the ROP Geometry node (For the extension, you need to type ‘.obj’ manually).

Click ‘Save to Disk’ in the top left corner to export the OBJ file to the file path specified.

The 3D model is completed now.



Note: Houdini Apprentice cannot export FBX

In fact, the free version of Houdini Apprentice cannot export a 3D model as FBX.

To export an FBX file, you need a paid licence of Houdini.

The cheapest option, Houdini Indie, costs about 30000 JPY for the annual subscription.

(As of May 2019)



In addition, you also need a paid license to create VAT (Vertex Animation Texture) etc.

Upload to STYLY

You can upload an OBJ file from Unity to STYLY.



How to upload an asset from Unity to STYLY



STYLYへアップロードした結果

How it looks after uploading to STYLY

Note: The setting for Houdini’s UI

Adjust the icon size of UI

Depending on the resolution of the monitor, you would find the UI’s icons at the top of the screen too large.

In that case, you can adjust the icon size.



Select ‘Edit > Preference > General User Interface’ in the top menu.

Preference / General User Interface を選択

Select ‘Preference > General User Interface’



You can see the size of icons changing when you change ‘Icon Size and Layout’ or ‘Playbar UI’.

Icon Size Layoutでアイコンサイズを指定

Select ‘Icon Size Layout’ to change the size of icons

Press ‘Accept’ and then restart Houdini to apply the icon size you set to the UI.

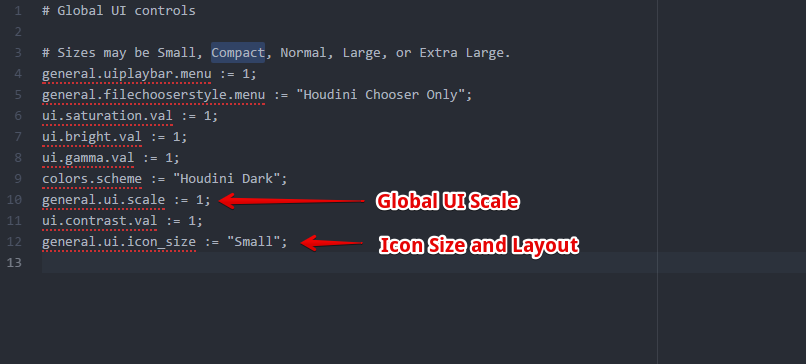

UI settings are saved in ui.pref

In the case of Windows10, the settings are saved in the following file.

C:\Users\{USERNAME}\Documents\houdini17.5\ui.pref

You can directly edit ‘ui.pref’ to change the size of UI.


The settings for UI are saved in ‘ui.pref’.
